Utilimaster Reach Commercial Van

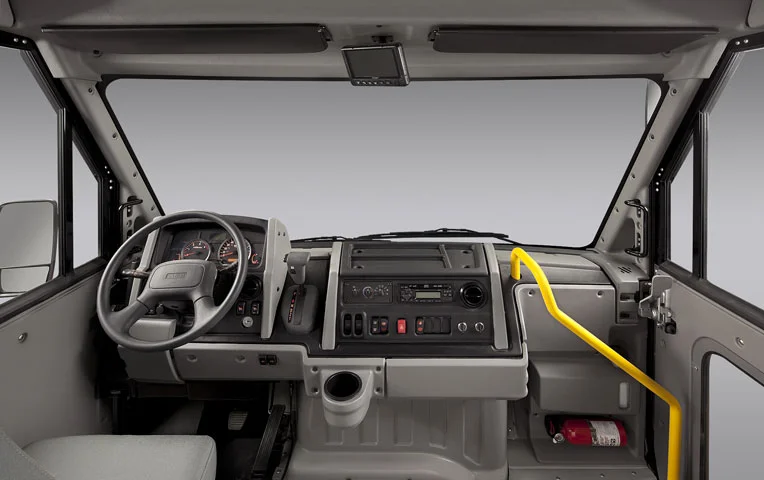

Utilimaster Reach (Interior)
Concept sketch

Concept sketch

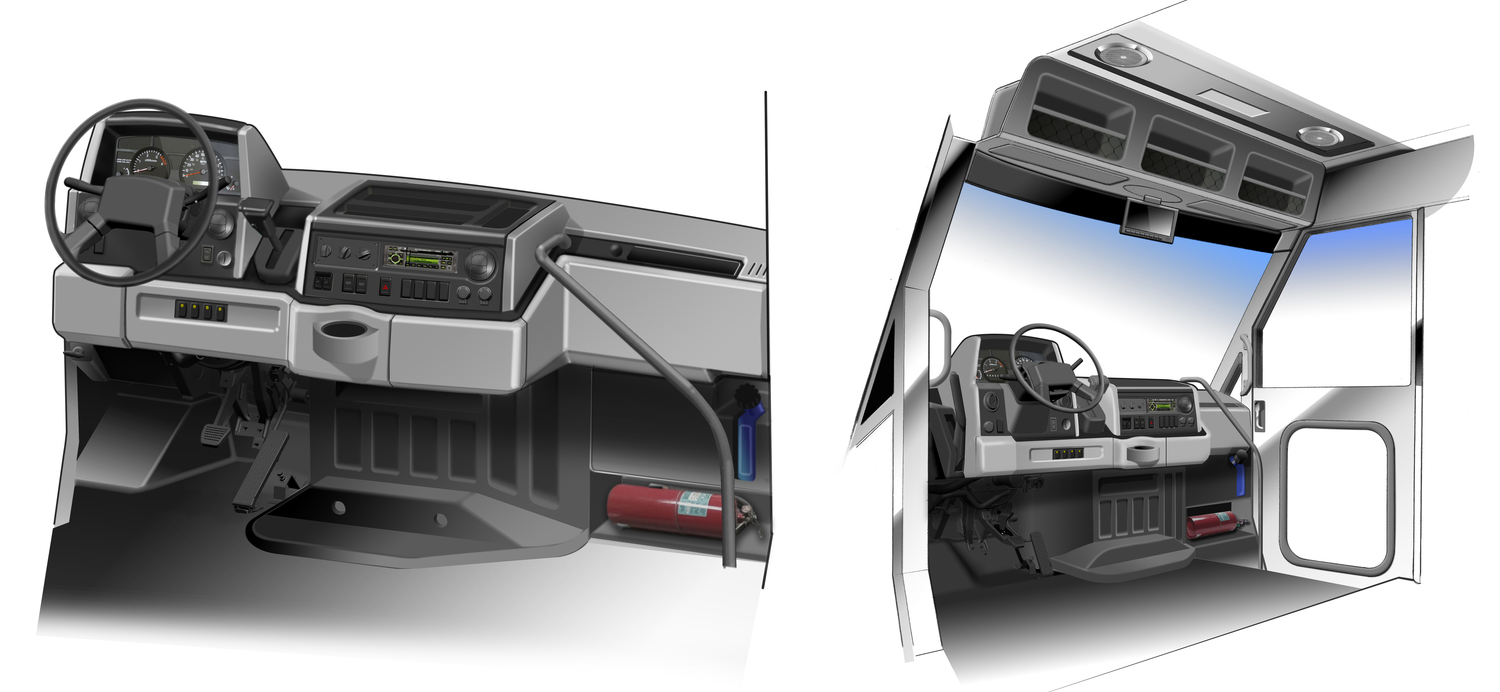

Refined sketch renderings

Refined sketch renderings

CAD images (provided by Roush)

CAD images (provided by Roush)

Utilimaster Reach (Exterior).jpg

We collaborated with Roush Engineering on the program for Utilimaster. The Exterior was developed by Roush, but we had responsibility for the total driver's compartment. That included the dash, considering all standard and optional features, control layouts, and all ergonomics, overhead storage, visors and optional drop down display console. We also designed a Buddy seat (second rider/helper) and passenger side package delivery tray features. Supplied initial sketch concepts, refinement, final design renderings, and final surface development in Pro/e.


Client: Roush

Design Team: Steve Miggels, Michael Zambelli & Henry Mack
